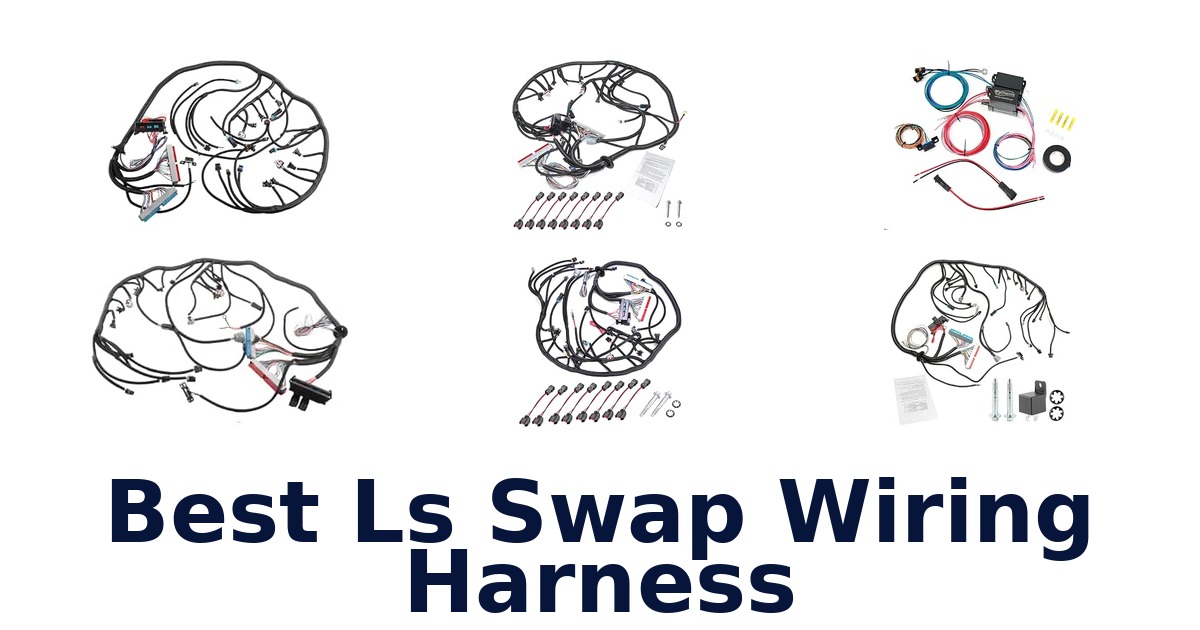

Best Ls Swap Wiring Harness: Practical Features for Easier Everyday Use

A strong LS swap wiring harness delivers the correct engine, throttle, transmission, and connector compatibility while making installation and troubleshooting more manageable for DIY builders and professional installers. The products here cover drive-by-cable and drive-by-wire applications, 4L60E and 4L80E automatic transmissions, manual transmissions, and broader LS engine configurations. Useful differences include PCM mounting reach, EV1 or EV6 injector support, included dash connections, fuse and relay integration, OBD2 access, fan-control wiring, and protective outer coverings.

Before choosing, identify the throttle strategy, transmission, injector connector type, PCM location, and whether you need a complete standalone electrical system or a narrower engine-and-transmission harness. That checklist prevents a connector mismatch from turning a straightforward swap into rewiring work.

The best LS swap wiring harness depends on the exact combination of throttle type, transmission, injectors, and vehicle layout. For DBC builds, options cover 4L60E, 4L80E, and manual transmissions, while one DBW harness supports a GM LS1 Vortec application with a four-wire hookup. Look for copper-core wiring, adequate PCM reach, protective sleeving, clear connectors, and useful provisions such as dash connections, OBD2, fuse and relay control, or fan wiring.

Confirm every connector and transmission match before ordering.

LS Swap Wiring Harnesses Compared

Image	Product	Buy
Best Pick 1	4L60E DBC LS Standalone Wiring Harness Compatible with GM LS1 1999-2006 Vortec Engines 4.8L 5.3L 6.0L Drive by Cable, with 8 Pack Fuel Injector Connector Adapter EV1 Transfer to EV6 Best for: Drive by Cable 4L60E Brand: ZJTBLL | Included Components: 1x Wiring Harness; 2x Mounting Screws & Washer;8x Fuel Injector Adapter	View on Amazon
Best Pick 2	ls Engine Wiring Harness Compatible with 1999-2006 Drive by Cable 4L60E Best for: Drive by Cable Transmissions Brand: Goopool | Included Components: Wiring Harness	View on Amazon
Best Pick 3	LS1 Wiring Harness T56 Compatible with TH400 TH350 700R4 200-4R 1997-2006 Best for: T56 Manual Transmissions Brand: RADHLBNIU | Included Components: Wiring Harness	View on Amazon
Best Pick 4	Nakkaa 4L80E Stand Alone Wiring Harness Compatible with DBC LS1 1997-2006 Best for: 4L80E Transmissions Brand: Nakkaa | Manufacturer: Nakkaa	View on Amazon
Best Pick 5	Standalone Wiring Harness, Fit for 97-06 GM LS1 Vortec Engine 4.8 5.3 6.0 L Best for: GM LS1 Vortec Engines Brand: Gledewen | Included Components: Complete Wiring Harness including all engine and transmission sensor connectors.	View on Amazon

How We Compared These Products

We compared dimensions, capacity, materials, compatibility, included components, and care requirements across many Amazon listings. These details matter because the product must fit the available space, intended use, setup requirements, and maintenance routine. After examining the wider field, we selected 10 products from ZJTBLL, Goopool, RADHLBNIU, Nakkaa, Gledewen, iKer, Aspaton, YAOFACAI, and Michigan Motorsports.

The shortlist includes products such as ZJTBLL 4L60E DBC LS Standalone Wiring Harness Compatible with GM LS1 1999-2006 Vortec, Goopool ls Engine Wiring Harness Compatible with 1999-2006 Drive by Cable 4L60E, and RADHLBNIU LS1 Wiring Harness T56 Compatible with TH400 TH350 700R4 200-4R 1997-Every recommendation is tied to information stated for that specific product; unclear or missing features were treated as unknown rather than filled with assumptions.

Detailed Reviews: Best Ls Swap Wiring Harness

1. 4L60E DBC LS Standalone Wiring Harness Compatible with GM LS1 1999-2006 Vortec Engines 4.8L 5.3L 6.0L Drive by Cable, with 8 Pack Fuel Injector Connector Adapter EV1 Transfer to EV6

Best for: DBC LS1 Swap with 4L60E.

This ZJTBLL wiring harness is designed for drive-by-cable (DBC) LS1 engines from 1999-2006, including Vortec 4.8L, 5.3L, and 6.0L, and the 4L60E transmission. It features an upgraded copper core for superior electrical conductivity and includes an 8-pack of fuel injector adapters.

Built to OE standards, this harness utilizes copper core wires for efficient electrical conduction and features 36" of extra length for PCM mounting under the dash, complete with an installed grommet. High-quality reinforced ring terminals and 1200-degree fiberglass braid on all circuits protect against heat, ensuring durability and reliable performance for your LS swap.

Product Details

Pros

• Compatible with DBC LS1 engines (1999-2006)
• Includes 8 fuel injector connector adapters (EV1 to EV6)
• Copper core wires for excellent conductivity
• Extra length for PCM mounting with grommet

Cons

• Only compatible with Drive-by-Cable (DBC) systems.

Ideal for LS1 engine swaps using drive-by-cable throttle bodies and the 4L60E transmission, this harness offers robust construction and convenient features for a clean installation.

2. ls Engine Wiring Harness Compatible with 1999-2006 Drive by Cable 4L60E

Best for: DBC LS1 Swap with Dash Connections.

The Goopool LS Engine Wiring Harness is built for 1999-2006 Drive-by-Cable LS1 engines, including Vortec 4.8L, 5.3L, and 6.0L, and the 4L60E transmission. It comes equipped with essential dash connections for speedometer, tachometer, park neutral, and more.

This harness provides all necessary dash connections, including speedometer, tachometer, park neutral, TCC, and malfunction indicator, along with a DLC port for diagnostics. Designed to be long enough for PCM mounting, it ensures a comprehensive solution for your LS swap. The copper material offers reliable conductivity for consistent engine operation.

Product Details

Pros

• Includes essential dash connections (speedometer, tachometer, etc.)
• Compatible with 1999-2006 DBC LS1 engines
• Sufficient length for PCM mounting
• Made with copper material for conductivity

Cons

• Specific compatibility is limited to Drive-by-Cable (DBC) LS1 engines.

A solid choice for 1999-2006 DBC LS1 engine swaps requiring integrated dash functionality, this harness simplifies wiring with its comprehensive connection set.

3. LS1 Wiring Harness T56 Compatible with TH400 TH350 700R4 200-4R 1997-2006

Best for: DBC LS1 Swap with Multiple Transmission Options.

This RADHLBNIU wiring harness is designed for DBC LS1 engines (1997-2006) and is compatible with a wide range of transmissions including T56, TH400, TH350, 700R4, and 200-4R. It features a wear-resistant plastic wrap and high-conductivity copper core wire.

Constructed with a wear-resistant plastic exterior that is flame retardant and corrosion resistant, this harness protects its high-conductivity copper core wires. This combination enhances durability and ensures reliable signal transmission for your LS1 engine swap, supporting various manual and automatic transmissions for versatile application.

Product Details

Pros

• Compatible with T56, TH400, TH350, 700R4, 200-4R transmissions
• Wear-resistant and flame-retardant plastic wrap
• High-conductivity copper core wire
• Supports DBC LS1 engines (1997-2006)

Cons

• Primarily designed for EV1 fuel injectors.

An excellent option for LS1 engine swaps with diverse transmission needs, this harness offers durable construction and broad compatibility for manual and automatic setups.

4. Nakkaa 4L80E Stand Alone Wiring Harness Compatible with DBC LS1 1997-2006

Best for: 4L80E Standalone DBC LS1 Swap.

The Nakkaa 4L80E Standalone Wiring Harness is specifically engineered for DBC LS1 Vortec engines (1997-2006), offering seamless integration without an adapter. It features built-in protection for enhanced reliability and safety.

This LS independent wiring harness contains all necessary circuits for reliable operation and includes built-in protection features for enhanced safety. Constructed with high-grade copper and PVC or TPE materials, it ensures excellent conductivity and durability, making it a dependable choice for your LS swap project.

Product Details

Pros

• Designed for 4L80E transmission compatibility
• Built-in protection for reliability and safety
• High-grade copper and PVC/TPE materials
• Seamless integration for DBC LS1 engines

Cons

• Requires specific 4L80E transmission setup.

This Nakkaa harness is ideal for LS1 engine swaps utilizing the 4L80E transmission with drive-by-cable systems, providing a reliable and safe wiring solution.

5. Standalone Wiring Harness, Fit for 97-06 GM LS1 Vortec Engine 4.8 5.3 6.0 L

Best for: Standalone LS Swap with 4L60E/4L80E.

This Gledewen standalone wiring harness features an OEM design for GM 1999-2006 Vortec engines with drive-by-cable throttle bodies and 4L60E or 4L80E transmissions (with adapter). It is constructed with high-quality copper core wires for low resistance and anti-corrosion properties.

The harness is crafted from high-quality copper core wires, offering lower eccentricity and resistance, along with anti-corrosion and wear-resistant properties. Its OEM design facilitates easy installation for fuel injection systems on GM Vortec engines, supporting both 4L60E and 4L80E transmissions when an adapter is used.

Product Details

Pros

• OEM design for easy installation
• Compatible with 4L60E or 4L80E transmissions (with adapter)
• High-quality copper core wires
• Supports drive-by-cable throttle bodies

Cons

• Requires an adapter for 4L80E transmission compatibility.

This Gledewen harness is a great fit for GM LS swap projects with 1999-2006 Vortec engines and drive-by-cable throttle bodies, especially when using the 4L60E or 4L80E transmission with an adapter.

6. 4L60E DBC LS Swap Wiring Harness Fits 1997-2006 GM DBC LS1 Vortec Engine

Best for: 4L60E DBC LS Swap Plug and Play.

The iKer 4L60E DBC LS Swap Wiring Harness is designed for 1997-2006 GM DBC LS1 Vortec engines (4.8L, 5.3L, 6.0L) and the 4L60E transmission. It features copper core wires for high conductivity and a wear-resistant, flame-retardant plastic coating.

Constructed with copper core wires, this harness ensures high electrical conductivity, corrosion resistance, and ductility. The plastic-wrapped exterior is wear-resistant, flame retardant, and anti-corrosion, with interference protection. Color-coded plugs and included instruction manuals simplify installation for a plug-and-play experience.

Product Details

Pros

• Plug and play with color-coded connectors
• Copper core wires for high conductivity
• Wear-resistant and flame-retardant coating
• Includes instruction manuals

Cons

• Specifically for Drive-by-Cable (DBC) LS1 engines.

This iKer harness is an excellent choice for 1997-2006 GM DBC LS1 engine swaps with 4L60E transmissions, offering ease of installation and durable, high-conductivity wiring.

7. 4L60E DBW Standalone Wiring Harness Compatible with GM LS1 Vortec Engine 4.8 5.3 6.0 L 1997-2004 Green/Blue PCM LS Swap Engine Harness Stand Alone Wire Harness Drive by Wire

Best for: 4L60E DBW LS Swap Standalone.

This ZJTBLL 4L60E Standalone Wiring Harness is designed for Drive-by-Wire (DBW) GM LS1 Vortec engines (1997-2004), supporting 4.8L, 5.3L, and 6.0L displacements with a Green/Blue PCM. It offers a simple four-wire hookup and a professional, leak-proof installation.

Featuring a simple four-wire hookup (switched power, constant power, and ground), this harness simplifies installation. It includes a sliding grommet seal for a professional, leak-proof finish and offers 4-5 feet of length from the cylinder head to the PCM mounting position under the dashboard. The high-quality copper core wires ensure excellent electrical performance.

Product Details

Pros

• Simple four-wire hookup
• Designed for Drive-by-Wire (DBW) systems
• Includes sliding grommet seal for leak-proof installation
• High-quality copper core wires

Cons

• Only compatible with Drive-by-Wire (DBW) systems.

This ZJTBLL harness is ideal for LS swap projects using 1997-2004 GM LS1 Vortec engines with Drive-by-Wire throttle bodies and the 4L60E transmission, offering a straightforward and professional installation.

8. Standalone Wiring Harness with 4L80E DBC Strap Compatible with LS1

Best for: 4L80E Standalone DBC LS1 Swap.

The Aspaton Standalone Wiring Harness is engineered for 1997-2006 DBC LS1 Vortec engines (4.8L, 5.3L, 6.0L) and is specifically designed for seamless integration with the 4L80E transmission without an adapter. It utilizes high-strength copper core wire for excellent conductivity.

Constructed with high-strength copper core wire, this harness ensures excellent conductivity, while the nylon braided fiber exterior enhances usability and durability. It is specifically designed for seamless integration with LS engines and the 4L80E transmission, making it a robust solution for your LS swap.

Product Details

Pros

• High-strength copper core wire for conductivity
• Durable nylon braided fiber exterior
• Designed for seamless 4L80E integration
• Compatible with 1997-2006 DBC LS1 engines

Cons

• Requires Drive-by-Cable (DBC) throttle body setup.

This Aspaton harness is a strong contender for LS swap builds featuring 1997-2006 DBC LS1 engines and the 4L80E transmission, prioritizing conductivity and durability.

9. T56 DBC LS1 Standalone Wiring Harness for 1997-2006 LS Swap

Best for: T56 DBC LS1 Swap.

The YAOFACAI T56 DBC LS1 Standalone Wiring Harness is designed for 1997-2006 LS swap projects, compatible with T56, TH400, TH350, 700R4, and 200-4R transmissions. It supports DBC LS1 engines and EV1 fuel injectors, ensuring a perfect connection for signal and power transmission.

This harness is primarily used for transmitting signals and power within your vehicle, ensuring a perfect connection to fuel injectors and electronic control modules. It is compatible with DBC LS1 engines and supports various non-electric transmissions, including the T56, making it a versatile component for LS swaps.

Product Details

Pros

• Compatible with T56 and other non-electric transmissions
• Supports DBC LS1 engines (1997-2006)
• Ensures perfect connection to fuel injectors
• Includes 3 MAF plugs

Cons

• Primarily designed for EV1 fuel injectors.

This YAOFACAI harness is an excellent choice for LS1 engine swaps utilizing the T56 or other non-electric transmissions with Drive-by-Cable throttle bodies, ensuring reliable signal transmission.

10. BP Automotive LS Swap Standalone Wiring Harness with Fuse Block OBD2 and Fan Control | Fits 4.8L 5.3L 5.7L 6.0L 6.2L LS1 LS2 LS3 LS6

Best for: LS Swap Standalone with Fuse Block & Fan Control.

The BP Automotive LS Swap Standalone Wiring Harness from Michigan Motorsports is designed for clean and reliable LS engine swaps, allowing independent operation from factory chassis wiring. It features an integrated fuse block, relay system, OBD2 port, and fan control wiring.

This harness simplifies LS engine swaps by managing power distribution for the engine, fuel system, and accessories through its integrated fuse block and relay system. It provides essential diagnostic access via an OBD2 port and includes wiring for fan control, ensuring a professional-grade performance and simplified tuning process.

Product Details

Pros

• Integrated fuse block and relay system
• Includes OBD2 port for diagnostics
• Provides fan control wiring
• Allows independent engine operation

Cons

• Requires separate fuse block and relay system for some setups.

This Michigan Motorsports harness is ideal for LS engine swaps demanding integrated power management and diagnostic capabilities, offering a professional solution for clean installations.

What Buyers Often Overlook

Fit and transmission matching

Transmission and throttle compatibility should be confirmed before comparing installation features. Several harnesses target drive-by-cable LS1 or Vortec engines and pair with a 4L60E, while dedicated choices support a 4L80E. Other products are intended for T56, TH400, TH350, 700R4, or 200-4R manual or non-electronic automatic applications.

The distinction matters because transmission control circuits and connectors are not interchangeable by assumption. Throttle strategy is equally important: most listed options are DBC, but the ZJTBLL 4L60E DBW harness is a separate drive-by-wire configuration for a narrower LS1 Vortec application.

Injector compatibility also varies. Some harnesses specify EV1 injectors, while another includes eight adapters for transferring EV1 connections to EV6. Match the harness to the engine controller, throttle body, transmission, injector plugs, and sensor connectors rather than relying only on engine displacement.

The Key Product Trade-Off

Installation reach, protection, and electrical features

A harness with useful reach and organized protection can reduce installation friction, but the best feature set depends on the swap layout. The ZJTBLL DBC 4L60E harness adds 36 inches for mounting the PCM under the dash and includes an installed grommet. The Goopool harness also describes length for under-dash PCM placement and includes speedometer, tachometer, park-neutral, TCC, malfunction-indicator, and DLC connections.

Protective construction ranges from copper-core wiring with plastic or PVC coverings to wear-resistant, flame-retardant, corrosion-resistant coverings, nylon braided fiber, and fiberglass braid on heat-exposed circuits. For a more integrated electrical setup, the Michigan Motorsports BP Automotive harness includes a fuse block, relays, OBD2, and fan-control wiring.

Simpler harnesses may be preferable when those circuits are already handled separately, while integrated provisions can make diagnostics and accessory wiring more organized.

Best Ls Swap Wiring Harness: Buyer's Guide

Fit, Dimensions, and Compatibility

Compare the listed dimensions with the intended counter, cabinet, appliance, storage, or installation space. Confirm model compatibility and connection requirements where they are supplied. A useful feature cannot compensate for a product that does not physically fit or work with the buyer’s existing setup.

Capacity, Output, and Operating Format

Match listed capacity, volume, output, and operating mode to the actual household or work routine. Larger figures can support heavier use, while a smaller format may be easier to place and maintain. Treat daily output, immediate storage, and container capacity as separate specifications when the listing distinguishes them.

Materials, Construction, and Care

Use the listed materials and care instructions to judge cleaning effort, storage conditions, and compatibility with the intended use. Dishwasher, freezer, food-contact, or weather-related claims are included only when supplied for that product. Check whether routine care fits the way the product will be used.

Included Components and Setup Needs

Review the included components before planning installation or first use. Hoses, adapters, lids, paddles, bowls, brushes, controls, and manuals vary by listing. Confirm power, water, assembly, or accessory requirements from the supplied product information rather than assuming that separately pictured parts are included.

Which Should You Choose?

Choose a DBC 4L60E harness when the swap uses a compatible drive-by-cable LS engine and automatic transmission; the listed ZJTBLL, Goopool, iKer, and similar options emphasize that configuration. Choose a 4L80E-specific harness when that transmission is installed, such as the Nakkaa or Aspaton options. For T56, TH400, TH350, 700R4, or 200-4R combinations, consider the RADHLBNIU or YAOFACAI harnesses, while checking their EV1 and non-electronic transmission limits.

If the build is DBW, use the dedicated ZJTBLL DBW model rather than a DBC harness. For broader engine coverage and built-in electrical management, the Michigan Motorsports harness adds a fuse block, relays, OBD2, and fan-control wiring.

Quick Buying Checklist

• Confirm the complete dimensions against the available space.
• Verify model, accessory, connection, and appliance compatibility.
• Match capacity or output to the expected amount of use.
• Compare materials and care instructions with the maintenance routine.
• Check the included components before planning setup or first use.
• Confirm listed power, water, storage, or installation requirements where applicable.

Frequently Asked Questions

What is a standalone LS swap wiring harness?

A standalone LS swap wiring harness is a custom-designed electrical system that allows you to integrate a GM LS engine into a vehicle other than its original platform. It simplifies the complex factory wiring by providing only the necessary connections for the engine and transmission to run.

Do I need a specific harness for my transmission type?

Yes, it’s crucial to match the wiring harness to your transmission. Harnesses are designed for specific transmissions like the 4L60E, 4L80E, or manual T56. Using the wrong harness can lead to compatibility issues and prevent proper operation of your drivetrain.

What's the difference between Drive by Cable (DBC) and Drive by Wire (DBW)?

Drive by Cable (DBC) uses a physical cable to connect the throttle pedal to the throttle body. Drive by Wire (DBW) uses electronic sensors and a motor. Your LS swap harness must be compatible with your engine’s throttle control system (DBC or DBW).

Can I use a harness for a different LS engine variant?

While many LS harnesses are cross-compatible with various LS engine displacements (4.8L to 6.2L), it’s best to confirm. Ensure the harness supports your specific engine’s PCM and any unique sensor requirements for optimal performance and reliable operation.

What are common features to look for in an LS swap harness?

Look for features like integrated fuse blocks, OBD2 ports for diagnostics, fan control outputs, and necessary adapter connectors for fuel injectors. These additions simplify installation and enhance the functionality of your LS swap project.

Final Words

Selecting the right LS swap wiring harness is vital for a smooth engine integration. Prioritize a harness that precisely matches your engine’s throttle type (DBC/DBW) and transmission. Consider additional features like fuse blocks and OBD2 ports for a more streamlined and functional build.
